Artikelnummer: 302 TORCH
Beställningsvara

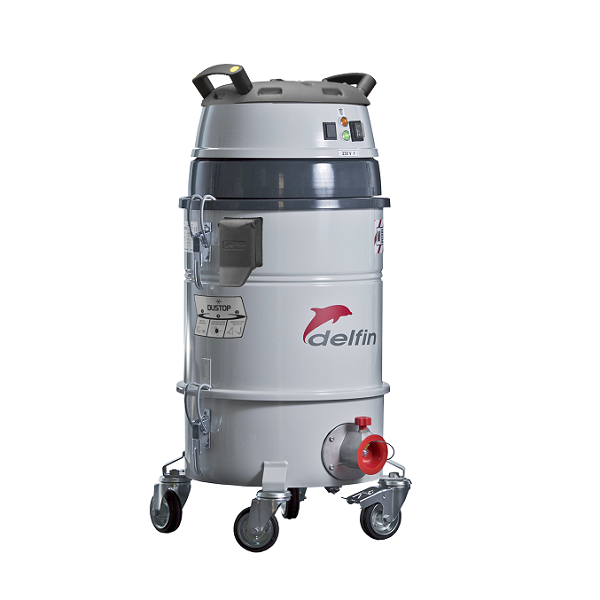

Rökavskiljare 2,3kW 1-fas Delfin
17 390 krEx.moms
21 737,50 krInkl.moms
Kontakta oss för offert
Produktinformation
Specifikationer
Sturdy and easy to transport, TORCH industrial vacuum cleaner has been conceived to remove possible welding fumes from the source,
by keeping fine dusts concentration to the extent permitted by law.
WELDING FUMES SUCTION
The suction of welding fumes in a mechanical workshop contributes to a healthier work environment, especially if directly at the source.
The suction at the source is the best way to collect and vacuum welding fumes and so to safeguard welder's health.
Torch 302 has a start and stop device which allows to power on/to stop the machine without the intervention of the welder, who will be free to only focus on using the welding torch.
Compact and mobile
Easy filter replacement
Optional articulated arm to suction in a
restricted area
Suction directly from the MIG/MAG welding
torch
OPTIONALS
ABSOLUTE HEPA FILTER /H14
ACTIVATED CARBON FILTER
OTHER VOLTAGES AND FREQUENCIES AVAILABLE UPON REQUEST
EXTRACTION ARM (TA.0678.0000)
by keeping fine dusts concentration to the extent permitted by law.
WELDING FUMES SUCTION
The suction of welding fumes in a mechanical workshop contributes to a healthier work environment, especially if directly at the source.
The suction at the source is the best way to collect and vacuum welding fumes and so to safeguard welder's health.
Torch 302 has a start and stop device which allows to power on/to stop the machine without the intervention of the welder, who will be free to only focus on using the welding torch.
Compact and mobile
Easy filter replacement
Optional articulated arm to suction in a
restricted area
Suction directly from the MIG/MAG welding
torch
OPTIONALS
ABSOLUTE HEPA FILTER /H14
ACTIVATED CARBON FILTER
OTHER VOLTAGES AND FREQUENCIES AVAILABLE UPON REQUEST
EXTRACTION ARM (TA.0678.0000)
Voltage V – Hz 230 – 50
Power kW 2,3
Max water lift mmH?O 2.500
Max air flow m³/h 180
Suction inlet mm 50
Noise level (EN ISO 3744) dB(A) 74
FILTER UNIT
Prefilter Spark trap filter
Filter Type Cartridge
Surface – Diameter cm²-mm 7.500 – 245
Material – Efficiency IEC 60335-2-69 Polyester – M
Cleaning system Dustop
COLLECTION UNIT
Discharge system
Capacity lt 13
VOLUME
Dimensions cm 40x50x86h
Weight kg 25
Tillbehör
-
Sugarm till Delfin 301-2 TORCH
Art.nr: TA.0678.0000 1 620 kr Ex.moms2 025 krInkl.momsBeställningsvara
